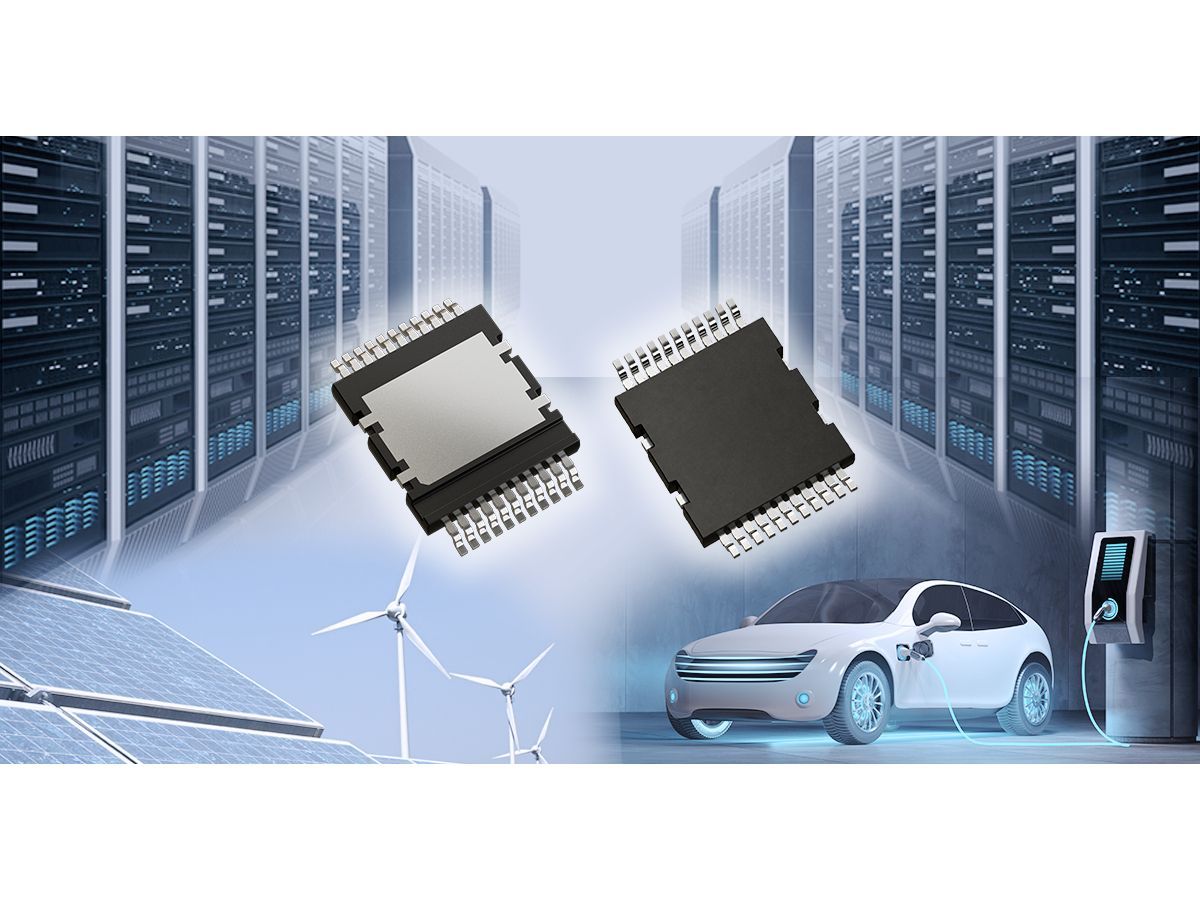

KAWASAKI, Japan — Toshiba Electronic Devices & Storage Corporation (“Toshiba”) today started shipping test samples of “TW007D120E,” a 1200V trench-gate SiC MOSFET primarily intended for power supply systems in next-generation AI data centers that is also suitable for use in renewable energy-related equipment.
THIS CONTENT IS RESERVED FOR SUBSCRIBERS ONLY
Subscribe now to read the latest news in your city and across Canada.
- Exclusive articles from Barbara Shecter, Joe O'Connor, Gabriel Friedman, and others.
- Daily content from Financial Times, the world's leading global business publication.
- Unlimited online access to read articles from Financial Post, National Post and 15 news sites across Canada with one account.
- National Post ePaper, an electronic replica of the print edition to view on any device, share and comment on.
- Daily puzzles, including the New York Times Crossword.
SUBSCRIBE TO UNLOCK MORE ARTICLES
Subscribe now to read the latest news in your city and across Canada.
- Exclusive articles from Barbara Shecter, Joe O'Connor, Gabriel Friedman and others.
- Daily content from Financial Times, the world's leading global business publication.
- Unlimited online access to read articles from Financial Post, National Post and 15 news sites across Canada with one account.
- National Post ePaper, an electronic replica of the print edition to view on any device, share and comment on.
- Daily puzzles, including the New York Times Crossword.
REGISTER / SIGN IN TO UNLOCK MORE ARTICLES
Create an account or sign in to continue with your reading experience.
- Access articles from across Canada with one account.
- Share your thoughts and join the conversation in the comments.
- Enjoy additional articles per month.
- Get email updates from your favourite authors.
THIS ARTICLE IS FREE TO READ REGISTER TO UNLOCK.
Create an account or sign in to continue with your reading experience.
- Access articles from across Canada with one account
- Share your thoughts and join the conversation in the comments
- Enjoy additional articles per month
- Get email updates from your favourite authors
Sign In or Create an Account
or
Article content
With the rapid expansion of generative AI, increasing power consumption has become a pressing issue for data centers. In particular, the widespread adoption of high-power AI servers and the growing deployment of 800V high-voltage direct current (HVDC) architectures are driving demand for power supply systems with higher power conversion efficiency and power density. Toshiba has addressed these requirements for next-generation AI data centers by developing TW007D120E, which will contribute to lower power consumption and to the miniaturization and higher efficiency of power supply systems.
Article content
Article content
Article content
TW007D120E is built around Toshiba’s proprietary trench-gate structure[1], which achieves industry-leading[2] low On-resistance per unit area (RDS(on)A); it reduces conduction loss through lower On-resistance while simultaneously achieving lower switching loss. Compared with Toshiba’s current products, TW007D120E reduces RDS(on)A by approximately 58%[3] and improves the figure of merit, On-resistance × gate-drain charge (RDS(on) × Qgd), which represents the trade-off between conduction loss and switching loss, by approximately 52%[3]. These characteristics will help to realize highly efficient operation and reduced heat generation in data center power supply systems and contribute to improved overall system efficiency.
Article content
By signing up you consent to receive the above newsletter from Postmedia Network Inc.
Article content
The new product is housed in a QDPAK package that supports top-side cooling. This contributes to both higher power density implementation and enhanced thermal performance in the power stage, which are essential for power conversion in next-generation AI data centers.
Article content
Toshiba will prepare for mass production of TW007D120E during fiscal year 2026 and will continue to expand its lineup, including development for automotive applications. Through the trench-gate SiC MOSFET, the company will contribute to improved power efficiency and reduced CO₂ emissions in data centers and a wide range of industrial equipment, supporting the realization of a decarbonized society.
Article content
TW007D120E is based on results obtained from JPNP21029, a project subsidized by the New Energy and Industrial Technology Development Organization (NEDO).
Article content
Notes:
[1] A device structure in which fine trenches are formed in the semiconductor substrate and gate electrodes are embedded within the trenches.
[2] Toshiba research, as of May 2026.
[3] Comparison of the newly developed 1200V SiC MOSFET with Toshiba’s 3rd-generation SiC MOSFET (TW015Z120C). Toshiba research, as of May 2026.
Article content
Applications
Article content
- Power supplies for data centers (AC-DC, DC-DC)
- Photovoltaic inverters
- Uninterruptible power supply (UPS)
- EV charging stations
- Energy storage systems
- Industrial motors
Article content
Features
Article content
- Low On-resistance and low RDS(on)A
- Low switching loss and low RDS(on) × Qgd
- Low gate drive voltage: VGS_ON=15V to 18V
- High thermal performance QDPAK package
Article content
Main Specifications
Article content
(Unless otherwise specified, Tvj=25°C) | ||||
Part number | TW007D120E | |||
Package | Name | QDPAK | ||
Absolute maximum ratings | Drain-source voltage VDSS (V) | 1200 | ||
Drain current (DC) ID (A) | Tc=25°C | 172 | ||
Electrical characteristics | Drain-source On-resistance RDS(on) (mΩ) | VGS=15V | Typ. | 7.0 |
Gate threshold voltage Vth (V) | VDS=10V | 3.0 to 5.0 | ||
Total gate charge Qg (nC) | VGS=15V | Typ. | 317 | |
Gate-drain charge Qgd (nC) | VGS=15V | Typ. | 33 | |
Input capacitance Ciss (pF) | VDS=800V | Typ. | 13972 | |
Diode forward voltage VSD (V) | VGS=0V | Typ. | 3.2 | |
Note: Specifications and schedules for products under development are subject to change without notice. | ||||
Article content
Article content
Follow the link below for more on Toshiba’s SiC Power Devices.
Article content
Article content
* Company names, product names, and service names may be trademarks of their respective companies.
* Information in this document, including product prices and specifications, content of services and contact information, is current on the date of the announcement but is subject to change without prior notice.
Article content
About Toshiba Electronic Devices & Storage Corporation
Article content
Toshiba Electronic Devices & Storage Corporation, a leading supplier of advanced semiconductor and storage solutions, draws on over half a century of experience and innovation to offer customers and business partners outstanding discrete semiconductors, system LSIs and HDD products.
Article content
Its 17,400 employees around the world share a determination to maximize product value, and to promote close collaboration with customers in the co-creation of value and new markets. The company looks forward to building and to contributing to a better future for people everywhere.
