– Will Contribute to Stable High-Speed Isolated Signal Transmission –
THIS CONTENT IS RESERVED FOR SUBSCRIBERS ONLY
Subscribe now to read the latest news in your city and across Canada.
- Exclusive articles from Barbara Shecter, Joe O'Connor, Gabriel Friedman, and others.
- Daily content from Financial Times, the world's leading global business publication.
- Unlimited online access to read articles from Financial Post, National Post and 15 news sites across Canada with one account.
- National Post ePaper, an electronic replica of the print edition to view on any device, share and comment on.
- Daily puzzles, including the New York Times Crossword.
SUBSCRIBE TO UNLOCK MORE ARTICLES
Subscribe now to read the latest news in your city and across Canada.
- Exclusive articles from Barbara Shecter, Joe O'Connor, Gabriel Friedman and others.
- Daily content from Financial Times, the world's leading global business publication.
- Unlimited online access to read articles from Financial Post, National Post and 15 news sites across Canada with one account.
- National Post ePaper, an electronic replica of the print edition to view on any device, share and comment on.
- Daily puzzles, including the New York Times Crossword.
REGISTER / SIGN IN TO UNLOCK MORE ARTICLES
Create an account or sign in to continue with your reading experience.
- Access articles from across Canada with one account.
- Share your thoughts and join the conversation in the comments.
- Enjoy additional articles per month.
- Get email updates from your favourite authors.
THIS ARTICLE IS FREE TO READ REGISTER TO UNLOCK.
Create an account or sign in to continue with your reading experience.
- Access articles from across Canada with one account
- Share your thoughts and join the conversation in the comments
- Enjoy additional articles per month
- Get email updates from your favourite authors
Sign In or Create an Account
or
Article content

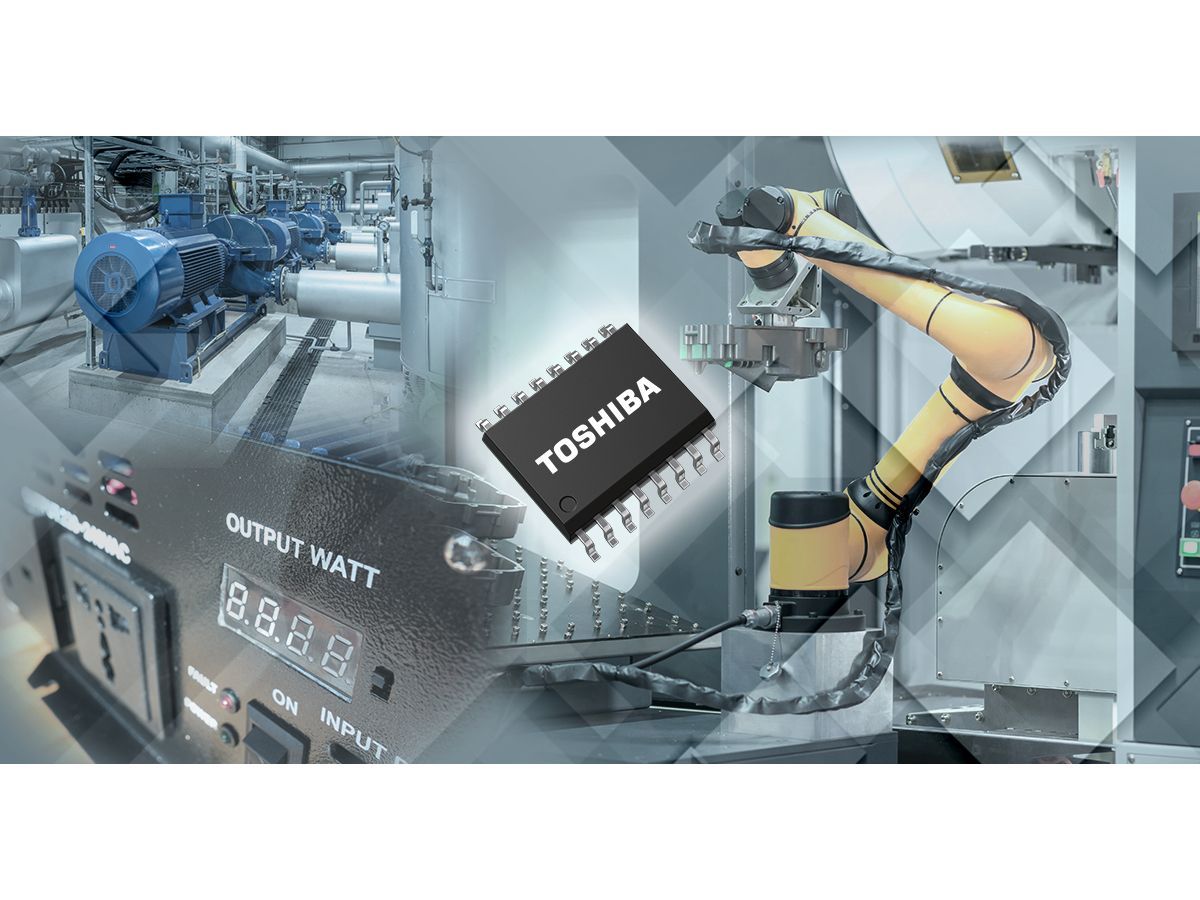

KAWASAKI, Japan — Toshiba Electronic Devices & Storage Corporation (“Toshiba”) has expanded its lineup of digital isolators with DCL54xx01A series of quad-channel high-speed standard digital isolators for industrial equipment. The ten new products in the series are housed in an SOIC16-W package and deliver a maximum operating temperature of 125°C. Volume shipments start today.
Article content
Article content
Article content
The widespread adoption of silicon carbide (SiC) and gallium nitride (GaN) power devices has made it practical to design industrial equipment that operates in high-temperature conditions. However, in isolated signal transmission, electrical noise applied between input and output can cause malfunctions, which has led to growing demand for isolation devices that enable stable control signal transmission while combining high noise immunity and reliability.
Article content
By signing up you consent to receive the above newsletter from Postmedia Network Inc.
Article content
Toshiba’s new digital isolators support a maximum operating temperature of 125°C. Use of the company’s proprietary magnetic coupling isolation transmission technology[1] ensures they also achieve a high common mode transient immunity (CMTI) of 150kV/μs (typ.)[2], contributing to stable equipment operation.
Article content
The new products are available in multiple channel configurations: four forward channels and zero reverse channels; three forward channels and one reverse channel; and two forward channels and two reverse channels. This flexibility allows selection for diverse applications in isolated communications interfaces for industrial automation, including I/O interfaces, motor control, and inverters.
Article content
With the introduction of these new digital isolators alongside its DCL341x0B series of standard digital isolators for industrial equipment, which feature low power consumption and mid-speed communication (up to 25Mbps) in small SSOP16 packages, Toshiba has ensured that its customers can select the most suitable products for communications speed ranges and application requirements.
Article content
Toshiba will continue to contribute to the realization of carbon neutrality by developing digital isolators for industrial and automotive equipment, and to provide high-quality isolation devices that support stable communication and control in equipment requiring electrical isolation.
Article content
Notes:
[1] A signal transmission method that integrates a modulation chip and a demodulation chip with insulation layers into a single package and uses a magnetic field to transmit signals.
[2] Measurement conditions: VI= VDDI or 0V, VCM=1500V, Ta=25°C (VDDI is VDD1 or VDD2 of the input-side)
Article content
Applications
Article content
- Industrial automation: programmable logic controllers (PLCs), I/O interfaces, etc.
- Motor control
- Inverters
- Switching power supply
Article content
Features
Article content
- High maximum operating temperature: 125°C (max)
- High common mode transient immunity: |CMTI|=150kV/μs (typ.)
- High-speed data rate: tbps=150Mbps (max)
- Quad-channel:
Four forward channels and zero reverse channels
Three forward channels and one reverse channel
Two forward channels and two reverse channels
Article content
Article content
Main Specifications
Article content
Part number | ||||||||
Number of channels | 4 | 4 | 4 | 4 | 4 | |||
Default output logic | Low | High | Low | High | Low | |||
Enabled control | None | None | Output Enable | Output Enable | Input Disable | |||
Package | ||||||||
Absolute | Operating temperature Topr (°C) | -40 to 125 | ||||||
Storage temperature Tstg (°C) | -65 to 150 | |||||||
Isolation voltage (1min.) BVS (Vrms) | Ta=25°C | Min | 5000 | |||||
Recommended | Power supply voltage | Topr=-40 to 125°C | 2.25 to 5.5 | |||||
Electrical characteristics | Common mode transient immunity |CMTI| (kV/μs) | VI=VDDI or 0V, VCM=1500V, Ta=25°C | Typ. | 150 | ||||
Data rate tbps (Mbps) | VDD1=VDD2= 2.25 to 5.5V Ta=-40 to 125°C | Max | 150 | |||||
Pulse width distortion PWD (ns) | VDD1=VDD2=5V, Ta=25°C | Typ. | 0.8 | |||||
Propagation delay tPHL, tPLH (ns) | Typ. | 10.9 | ||||||
Sample Check & Availability | ||||||||
Article content
Part number | ||||||||
Number of channels | 4 | 4 | 4 | 4 | 4 | |||
Default output logic | High | Low | High | Low | High | |||
Enabled control | Input Disable | Output Enable | Output Enable | Output Enable | Output Enable | |||
Package | ||||||||
Absolute | Operating temperature Topr (°C) | -40 to 125 | ||||||
Storage temperature Tstg (°C) | -65 to 150 | |||||||
Isolation voltage (1min.) BVS (Vrms) | Ta=25°C | Min | 5000 | |||||
Recommended | Power supply voltage | Topr=-40 to 125°C | 2.25 to 5.5 | |||||
Electrical characteristics | Common mode transient immunity |CMTI| (kV/μs) | VI=VDDI or 0V, VCM=1500V, Ta=25°C | Typ. | 150 | ||||
Data rate tbps (Mbps) | VDD1=VDD2= 2.25 to 5.5V Ta=-40 to 125°C | Max | 150 | |||||
Pulse width distortion PWD (ns) | VDD1=VDD2=5V, Ta=25°C | Typ. | 0.8 | |||||
Propagation delay tPHL, tPLH (ns) | Typ. | 10.9 | ||||||
Sample Check & Availability | ||||||||
Article content
Follow the links below for more on the new products.
Article content
Article content
Article content
Article content
Article content
Article content
Article content
Article content
Article content
Article content
Article content
Article content
Article content
Article content
Article content
Article content
Article content
Article content
Follow the link below for more on Toshiba’s standard digital isolators.
Article content
Article content
To check availability of the new products at online distributors, visit:
Article content
DCL540C01A
Buy Online
DCL540D01A
Buy Online
DCL540L01A
Buy Online
DCL540H01A
Buy Online DCL541A01A
Buy Online
DCL541B01A
Buy Online
DCL541L01A
Buy Online
DCL541H01A
Buy Online DCL542L01A
Buy Online
DCL542H01A
Buy Online * Company names, product names, and service names may be trademarks of their respective companies.
* Information in this document, including product prices and specifications, content of services and contact information, is current on the date of the announcement but is subject to change without prior notice.
