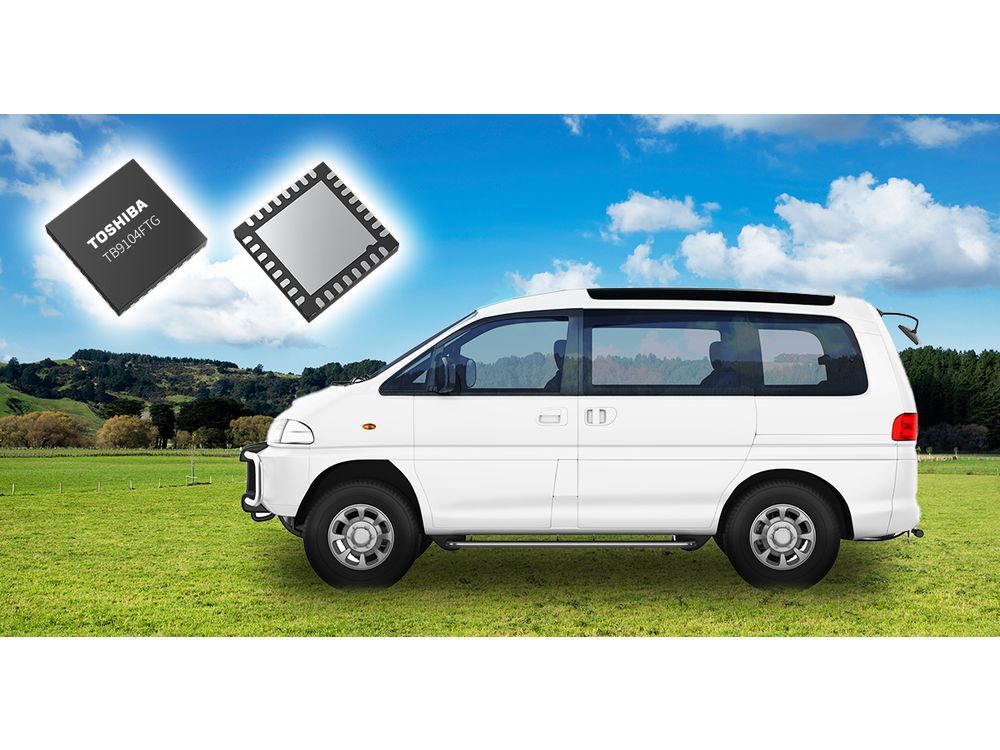

KAWASAKI, Japan — Toshiba Electronic Devices & Storage Corporation (“Toshiba”) has started providing engineering samples of “ TB9104FTG,” a gate driver[1] for bridge circuits used in high-current automotive brushed DC motors, suitable for body system applications such as power back doors, power sliding doors, and power seats.
