.jpg)
2 hours ago
4
Article content

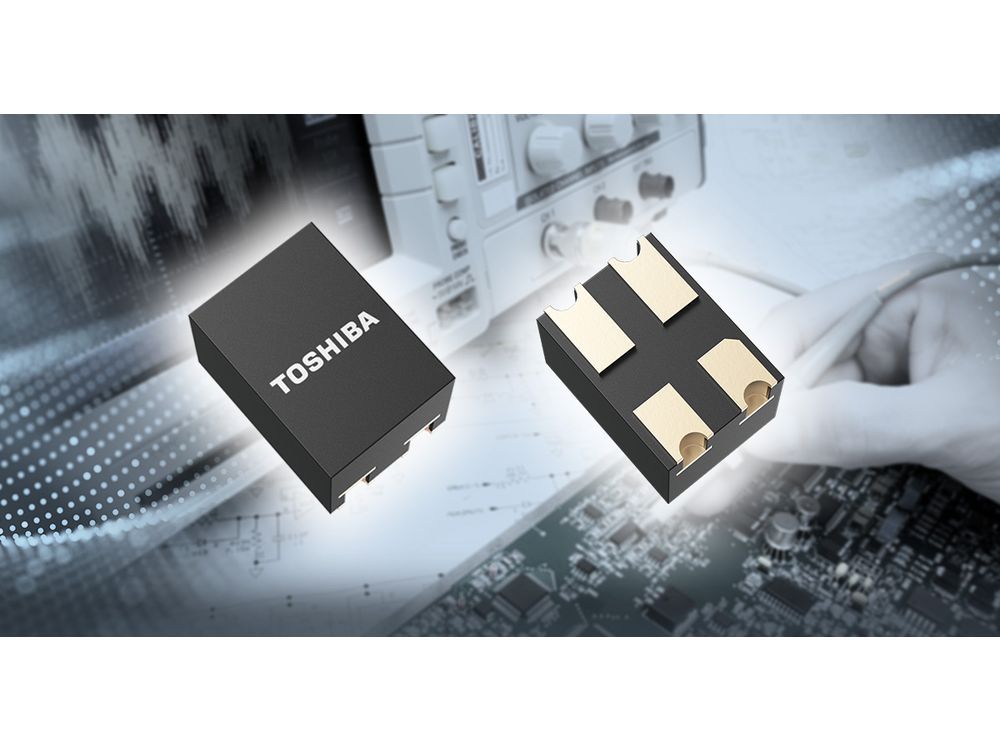

KAWASAKI, Japan — Toshiba Electronic Devices & Storage Corporation (“Toshiba”) has launched four voltage-driven photorelays, “ TLP3407SRB,” “ TLP3412SRB,“ ” TLP3412SRHB,“ and “ TLP3412SRLB” housed in the small S-VSON4T package. The new photorelays deliver a maximum operating temperature rating of 135°C for equipment that operates at high temperatures. Volume shipments start today.
THIS CONTENT IS RESERVED FOR SUBSCRIBERS ONLY
Subscribe now to read the latest news in your city and across Canada.
- Exclusive articles from Barbara Shecter, Joe O'Connor, Gabriel Friedman, and others.
- Daily content from Financial Times, the world's leading global business publication.
- Unlimited online access to read articles from Financial Post, National Post and 15 news sites across Canada with one account.
- National Post ePaper, an electronic replica of the print edition to view on any device, share and comment on.
- Daily puzzles, including the New York Times Crossword.
SUBSCRIBE TO UNLOCK MORE ARTICLES
Subscribe now to read the latest news in your city and across Canada.
- Exclusive articles from Barbara Shecter, Joe O'Connor, Gabriel Friedman and others.
- Daily content from Financial Times, the world's leading global business publication.
- Unlimited online access to read articles from Financial Post, National Post and 15 news sites across Canada with one account.
- National Post ePaper, an electronic replica of the print edition to view on any device, share and comment on.
- Daily puzzles, including the New York Times Crossword.
REGISTER / SIGN IN TO UNLOCK MORE ARTICLES
Create an account or sign in to continue with your reading experience.
- Access articles from across Canada with one account.
- Share your thoughts and join the conversation in the comments.
- Enjoy additional articles per month.
- Get email updates from your favourite authors.
THIS ARTICLE IS FREE TO READ REGISTER TO UNLOCK.
Create an account or sign in to continue with your reading experience.
- Access articles from across Canada with one account
- Share your thoughts and join the conversation in the comments
- Enjoy additional articles per month
- Get email updates from your favourite authors
Sign In or Create an Account
or
Article content
Article content
Advances in electrification and autonomous driving now require high-density packaging of electronic components in automotive equipment. This has raised the temperatures at which automotive semiconductors operate, and testing under similar conditions is necessary to evaluate reliability; testers, burn-in equipment, probe cards, and other devices for automotive semiconductors must be able to operate at high temperatures, as must the photorelays used in them.
Article content
Article content
By signing up you consent to receive the above newsletter from Postmedia Network Inc.
Article content
The maximum operating temperature of Toshiba’s new products have been pushed from the 125°C of current products[1] to 135°C by optimizing the design of built-in elements. In addition, because they are voltage-driven type photorelays with built-in resistors on the input side, no external resistor is required, reducing space requirements on mounting boards. They are also housed in a small package, the S-VSON4T, which is 1.45 × 2.0 mm (typ.).
Article content
The combination of these factors makes the new photorelays suitable for application in automotive semiconductor testers, probe cards, and burn-in equipment, where multiple photorelays need to be mounted within a limited board space, and reliable high-temperature operation is required.
Article content
Toshiba will continue to offer a lineup of products that support high-temperature operation in equipment.
Article content
Note:
[1] TLP3407SRA, TLP3412SRA, TLP3412SRHA and TLP3412SRLA
Article content
Applications
Article content
- Semiconductor testers used to evaluate memories, SoC, LSI, etc.
- Probe cards
- Burn-in equipment
Article content
Features
Article content
- Operating temperature rating: 135°C
- Small package: S-VSON4T (1.45mm×2.0mm (typ.))
Article content
Main Specifications
Article content
(Unless otherwise specified, Ta=25°C) | |||||||
Package | Name | S-VSON4T | |||||
Size (mm) | 1.45×2.0 (typ.), t=1.4 (max) | ||||||
Contact | 1-Form-A | ||||||
Absolute | Operating temperature Topr (°C) | -40 to 135 | |||||
OFF-state output terminal voltage VOFF (V) | 60 | 60 | 60 | 60 | |||
ON-state current ION (A) | 1 | 0.4 | 0.4 | 0.4 | |||
ON-state current (pulsed) IONP (A) | 3 | 1.2 | 1.2 | 1.2 | |||
Recommended | Applied input forward voltage VIN (V) | Typ. | 3.3 | 3.3 | 5 | 1.8 | |
Max | 6 | 6 | 5.5 | 3.3 | |||
Coupled electrical | Limited LED current ILIM(LED) (mA) | VIN=5.5V, | Max | – | – | 2 | – |
VIN=3.3V, | Max | 1 | 2 | – | – | ||
VIN=1.8V, | Max | – | – | – | 10 | ||
Operating voltage VFON (V) | ION=100mA | Max | 3 | 3 | 3.9 | 1.6 | |
ON-state resistance RON (Ω) | Max | 0.3 | 1.5 | 1.5 | 1.5 | ||
Electrical | Output capacitance COFF (pF) | V=0V, | Max | 150 | 20 | 20 | 20 |
OFF-state current IOFF (nA) | VOFF=50V | Max | 1 | 1 | 1 | 1 | |
Switching | Turn-on time tON (ms) | RL=200Ω, | Max | – | – | 1.5 | – |
RL=200Ω, | Max | 10 | 1 | – | 0.1 | ||
RL=200Ω, | Max | – | – | – | 0.3 | ||
Turn-off time tOFF (ms) | RL=200Ω, | Max | – | – | 0.5 | – | |
RL=200Ω, | Max | 1 | 0.5 | – | 0.225 | ||
RL=200Ω, | Max | – | – | – | 0.15 | ||
Isolation | Isolation voltage BVS (Vrms) | AC, 60s | Min | 500 | 500 | 500 | 500 |
Sample check & availability | |||||||
Article content
Article content
Related Information
Article content
Technical Articles
Article content
Article content
Article content
Article content
Follow the links below for more on the new products.
Article content
Article content
Article content
Article content
Article content
Article content
Article content
Article content
Follow the link below for more on Toshiba’s isolators and solid state relays.
Article content
Article content
To check availability of the new products at online distributors, visit:
Article content
TLP3407SRB
Article content
Article content
Article content
Article content
TLP3412SRB
Article content
Article content
Article content
Article content
TLP3412SRHB
Article content
Article content
Article content
Article content
TLP3412SRLB
Article content
Article content
Article content
* Company names, product names, and service names may be trademarks of their respective companies.
* Information in this document, including product prices and specifications, content of services and contact information, is current on the date of the announcement but is subject to change without prior notice.
Article content
About Toshiba Electronic Devices & Storage Corporation
Article content
Toshiba Electronic Devices & Storage Corporation, a leading supplier of advanced semiconductor and storage solutions, draws on over half a century of experience and innovation to offer customers and business partners outstanding discrete semiconductors, system LSIs and HDD products.
Article content
Its 17,000 employees around the world share a determination to maximize product value, and to promote close collaboration with customers in the co-creation of value and new markets. The company looks forward to building and to contributing to a better future for people everywhere.
Article content
Article content
Article content
Article content
View source version on businesswire.com:
Article content
Article content
Article content
Contacts
Article content
Customer Inquiries
Article content
Article content
Optoelectronic Device Sales & Marketing Dept.
Article content
Article content
Tel: +81-44-548-2218
Article content
Article content
Article content
Media Inquiries:
Article content
Article content
C. Nagasawa
Article content
Article content
Communications & Market Intelligence Dept.
Article content
Article content
Toshiba Electronic Devices & Storage Corporation
Article content
Article content
Article content
Article content
English (US)
