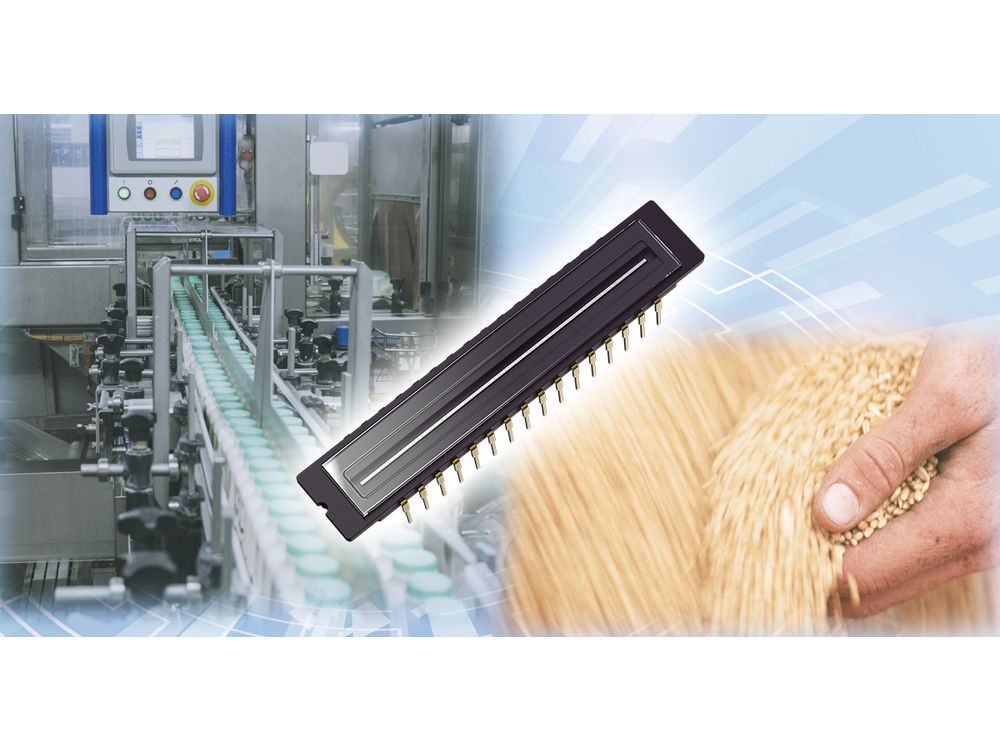

KAWASAKI, Japan — Toshiba Electronic Devices & Storage Corporation (“Toshiba”) has launched ” TCD2400DG,” a lens-reduction type[1] CCD[2] linear image sensor developed expressly for line scan cameras[3] used in visual inspections. Shipments start today.
THIS CONTENT IS RESERVED FOR SUBSCRIBERS ONLY
Subscribe now to read the latest news in your city and across Canada.
- Exclusive articles from Barbara Shecter, Joe O'Connor, Gabriel Friedman, and others.
- Daily content from Financial Times, the world's leading global business publication.
- Unlimited online access to read articles from Financial Post, National Post and 15 news sites across Canada with one account.
- National Post ePaper, an electronic replica of the print edition to view on any device, share and comment on.
- Daily puzzles, including the New York Times Crossword.
SUBSCRIBE TO UNLOCK MORE ARTICLES
Subscribe now to read the latest news in your city and across Canada.
- Exclusive articles from Barbara Shecter, Joe O'Connor, Gabriel Friedman and others.
- Daily content from Financial Times, the world's leading global business publication.
- Unlimited online access to read articles from Financial Post, National Post and 15 news sites across Canada with one account.
- National Post ePaper, an electronic replica of the print edition to view on any device, share and comment on.
- Daily puzzles, including the New York Times Crossword.
REGISTER / SIGN IN TO UNLOCK MORE ARTICLES
Create an account or sign in to continue with your reading experience.
- Access articles from across Canada with one account.
- Share your thoughts and join the conversation in the comments.
- Enjoy additional articles per month.
- Get email updates from your favourite authors.
THIS ARTICLE IS FREE TO READ REGISTER TO UNLOCK.
Create an account or sign in to continue with your reading experience.
- Access articles from across Canada with one account
- Share your thoughts and join the conversation in the comments
- Enjoy additional articles per month
- Get email updates from your favourite authors
Sign In or Create an Account
or
Article content
Image inspection equipment that integrates line scan cameras, including color sorters, is used in diverse applications, among them sorting and grading foodstuffs, recognizing and removing foreign objects, identifying types of recycled plastics, and detecting scratches or stains on industrial products.
Article content
Article content
Article content
TCD2400DG is a color CCD linear image sensor with 4096 picture elements in a three-line array, with a 7μm pitch between elements. Each line functions independently to recognize red, green and blue (RGB). The line rate, the number of lines captured per second, 22.7kHz, is faster than that of the 10.5kHz TCD2564DG, Toshiba’s current product for image inspection equipment.
Article content
By signing up you consent to receive the above newsletter from Postmedia Network Inc.
Article content
Image inspection equipment rapidly processes massive volumes of image data to precisely and accurately identify objects passing in front of the equipment at high speed. By approximately doubling the readout speed of TCD2564DG, TCD2400DG will contribute to equipment with improved processing speeds.
Article content
The sensor acquires high-resolution color images, with no need for the color interpolation processing[4] required by Bayer element arrays. This performance makes it highly suited to color line scan camera applications that require immediate judgment.
Article content
The sensor incorporates other improvements. The timing generator circuit[5] and CCD driver[6], both externally mounted in Toshiba’s current products, are integrated into the sensor, which reduces the number of signal lines required to drive the CCD and renders an external CCD driver unnecessary. It also eliminates the need for strict timing adjustment between signals, simplifying wiring work and streamlining system development process. The reduction of external wiring helps suppress electromagnetic interference that occurs during high-speed operation.
Article content
Toshiba will continue to expand its product lineup and promote advances in imaging and sensing technology that supports applications such as scanners for multifunction devices and inspection equipment.
Article content
Notes: | |
[1] | The method of reducing an image with optical lenses and projecting onto a CCD or CMOS image sensor. |
[2] | Charge Coupled Device |
[3] | A camera that generates an image by scanning the subject one line at a time. Unlike an existing area camera that captures an entire “surface” at once, a line scan camera continuously captures “lines” and constructs a complete image as the subject moves. |
[4] | A mechanism in which R, G, and B filters are arranged in a checkerboard pattern. Missing color information in each element of the array is supplemented from its surrounding elements to generate a color image. |
[5] | A circuit for generating signals necessary to drive a linear image sensor. |
[6] | A circuit for amplifying the drive signals of a linear image sensor. |
Article content
Article content
* See this release plus images on Toshiba’s website.
Toshiba Releases Lens-Reduction Type CCD Linear Image Sensor for High-Speed Data Readouts by Image Inspection EquipmentApplications
- Color sorter
- Food sorting machines for grains and other agricultural products
- Industrial product sorting machines for plastic pellets and similar materials
- Inspection equipment
- Web inspection (for sheet materials such as rolls, paper, cloth, and film)
- Printed material inspection
Features
- High-speed line rate: 22.7kHz (max)
- Number of image sensing elements: 4096 elements (three independent lines for RGB), widely adopted for inspection equipment.
- The element array consists of three independent element lines (4096 elements×3 lines), one each for RGB, enabling acquisition of high-resolution images without the delay caused by color interpolation processing.
- The built-in timing generator circuit and CCD driver help facilitate system development and reduce EMI.
Main Specifications
Part number | ||
Power supply voltage | VAVDD, VDVDD, VCKDVDD : 3.1 to 3.5 VVDD10 : 9.5 to 10.5 | |
Image sensing element size | 7×7 (7μm pitch) | |
Number of image sensing | 4096 elements×3 lines (RGB per line) | |
Data rate | Max | 100MHz (50MHz×2ch) |
Line rate | Max | 22.7kHz |
Package | WDIP32 | |
Others/Additional features | Timing generator circuit, CCD driver | |
Follow the link below for more on the new product.
TCD2400DG Follow the link below for more on Toshiba‘s linear image sensors.
Linear Image Sensors * Company names, product names, and service names may be trademarks of their respective companies.
