Miata Metals Intersects Wide Intervals of Veining at the Puma Target on the Sela Creek Gold Project in Suriname

Article content

Article content

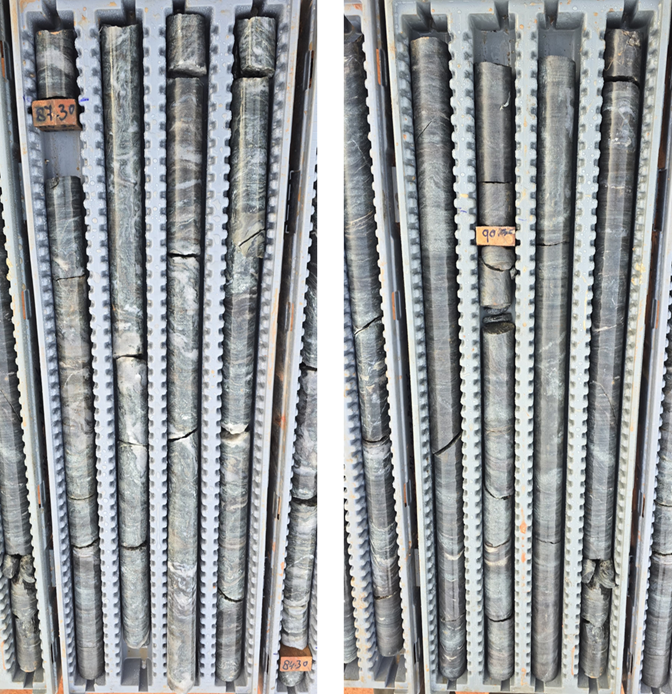

Figure 1. 25DDH-SEL-019 At approximately 85 – 92m. Alteration commonly consists of biotite, chlorite, and titanite and pyrite. Two potentially mineralized vein directions are present at the Puma Target and the drilling is angled to intersect both vein sets.

Article content

Article content

Article content

Article content

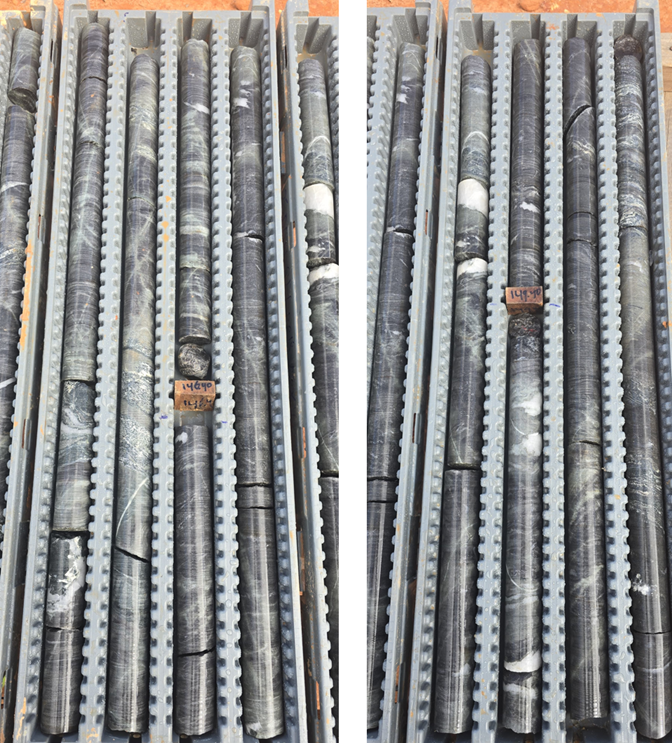

Figure 2. Drill core images showing veining and alteration in 25DDH-SEL-018 between approximately 145 and 151m.

Article content

Both holes targeted zones interpreted from surface structural measurements and vein density models, reinforcing confidence in the Company’s targeting approach.

Article content

Article content

Article content

Article content

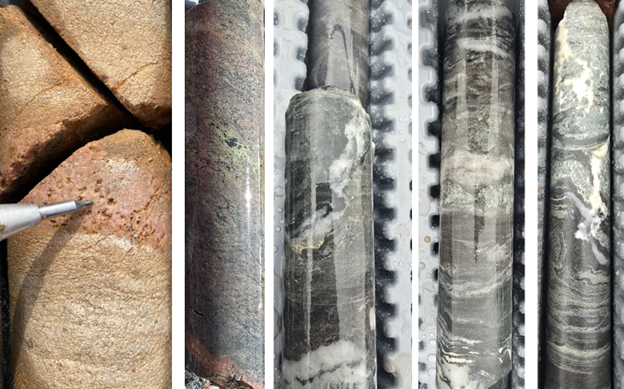

Figure 3. From left to right: 25DDH-SEL-018 at 71m, relic boxwork pyrite in quartz vein in oxidized zone. 25DDH-SEL-018 at 82.6m, intense k-feldspar and biotite alteration. 25DDH-SEL-019 at 172m Quartz vein with pyrite in selvage. 25SEL-DDH-019 at 172m intense veining and alteration. 25SEL-DDH-019 at 117.2m, intense veining, both foliation parallel and cross-cutting.

Article content

Article content

Article content

Article content

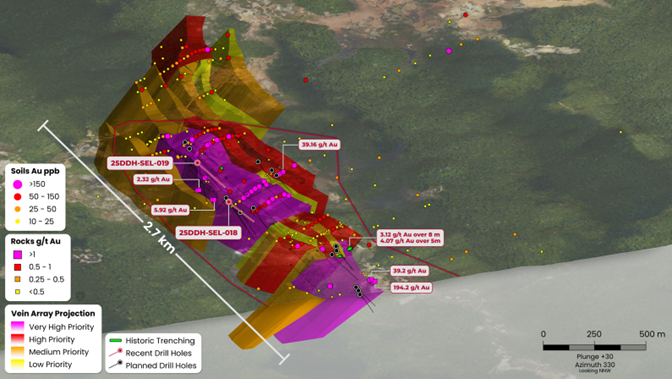

Figure 4. Location of Puma holes 25DDH-SEL-018 and 019.

Article content

Puma is the southern-most target at Sela Creek, and currently encompasses a total of approximately 2.7 km of strike length, and a width of 400 m. Puma is one of several targets identified at the 215 km² property where high-grade gold is mined from shallow pits by small-scale miners, leaving the bedrock unexplored. Recent mining¹ by artisanal operators at Puma have further supported the Company’s targeting efforts and conviction.

Article content

Article content

Ongoing Generative Exploration

Article content

In parallel with its 10,000-meter drilling campaign, Miata’s technical team continues to evaluate historic and active mining areas across the 215 km² Sela Creek concession. This work includes pit mapping, sampling, and the assessment of artisanal ore¹ piles to better understand vein morphology and mineralogy across the project.

Article content

To date in 2025, the Company has collected 248 surface samples, including a standout artisanal ore sample from the Aplito area assaying 675 g/t Au² shown in figure 5, underscoring the potential for further high-grade mineralization outside of the current targets. The Aplito target area is several km east of camp and will be assessed for follow up exploration. Figure 5 also shows visible gold in a quartz vein from an ore¹ pile sample of the Puma Target.

Article content

To build on these efforts, Miata intends to commence a comprehensive stream sediment sampling program focused on the underexplored areas trending toward the Guyana Shield Shear Zone. This initiative will generate over 1,000 samples and aims to vector toward new targets for follow-up exploration.

Article content

Article content

Article content

Article content

Article content

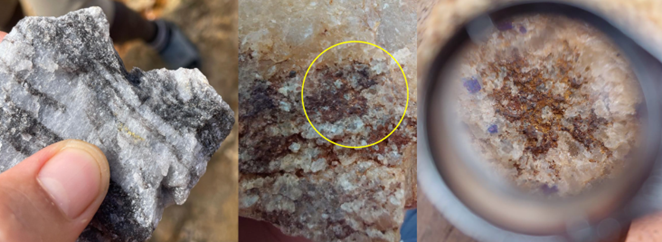

Figure 5. Left. Artisanal miners’ ore¹ sample with visible gold on the Puma Target. Middle, ore pile sample from the Aplito
prospect grading 675 g/t Au², showing weathered sulphides and visible gold. Right, same sample as middle photo but viewed through a hand lens.

Article content

QAQC

Article content

Grab samples were sent to Filab in Paramaribo, an ISO certified laboratory for 50g aliquot fire assay. Both the Company and Filab insert standards, duplicates and blanks at select intervals, all of which yielded acceptable values. Drill core of hole 25DDH-SEL-018 and 19 will be logged and cut on site prior to analysis at Filab.

Article content

QP Statement

Article content

The scientific and technical information in this news release has been reviewed and approved by Dr. Jacob Verbaas, P.Geo., a director of the Company and Qualified Person as defined under the definitions of National Instrument 43-101 – Standards of Disclosure for Mineral Projects.

Article content

¹ Ore refers to ore from artisanal miners activities. Miata Metals has not defined resources or reserves and does not generate revenue from artisanal mining activities. Sela Creek is an exploration stage project.
